I-Beam Legs

1

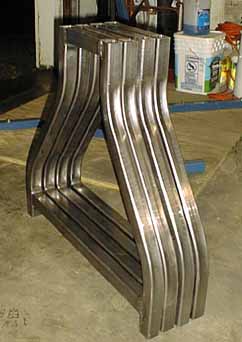

Finished leg.



2

Leg in welding jig.


3

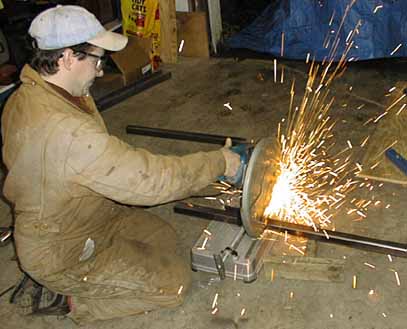

Cutting 1 1/2" square tubing, Wall thickness ?


4

Filing the burrs off.



5

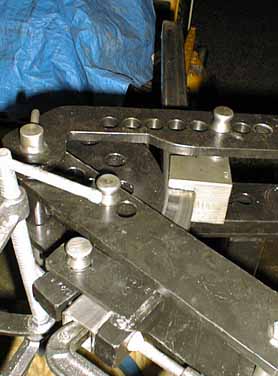

Set up for first bend.



6

First bend complete.


7

Bent Leg.


8

Close up of 28" straight in bender.



9

Close up of first bend completed.



10

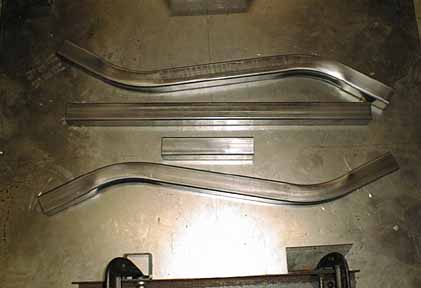

Two 28" bent legs, 24" lower piece, 7" top piece - cleaned, burnished - ready to fit in welding jig.



11

In welding jig, ready to tack.



12

Tacked.


13

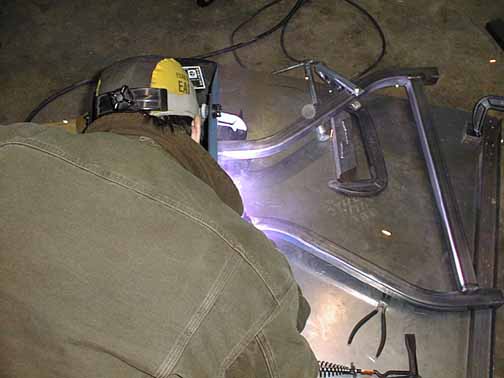

Out of welding jig, completing the welds.



14

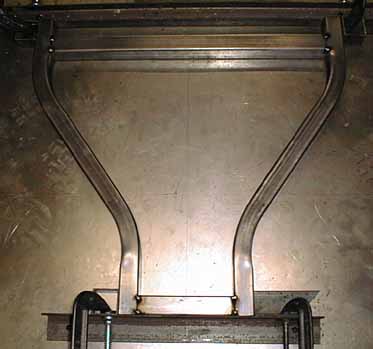

Four legs welded - top support and bottom adjusters to go.


15


Yes, that is my finger....



end of 12/13/2001 pictures

01/11/2002 fixed the pictures

Removed the engine stand to separate page.

01/14/2002
